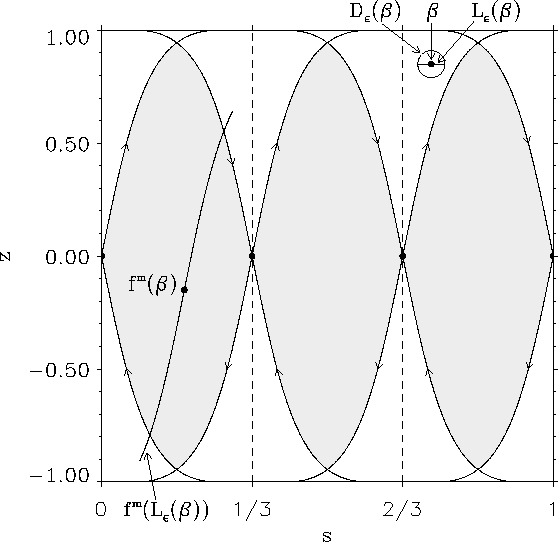

Figure 12

The shaded region in the picture is bounded by the stable and unstable manifold segments of the fixed points and contains the invariant set. Let beta denote a boundary point that is not on the stable manifold of any of the fixed points. D_epsilon(beta) is a small disk of radius epsilon centered at beta, and L_epsilon(beta) is a horizontal line segment through beta contained in D_epsilon(beta). For a sufficient number of iterates m, fm(L_epsilon(beta)) will cross segments of the stable manifold bounding the shaded region.
